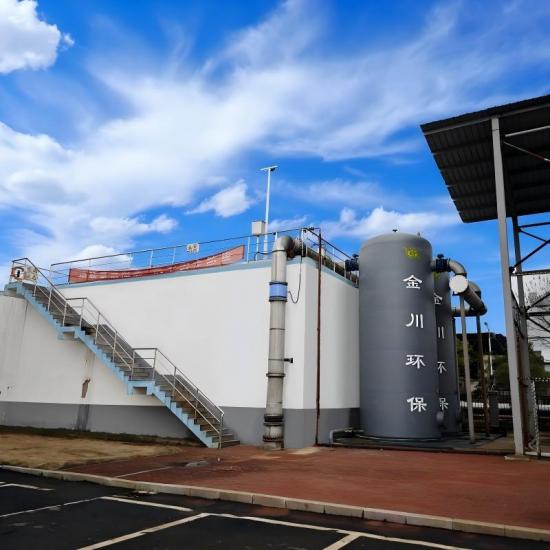

COD Removal Magnetic Fenton Package System for Industrial Waste Water Treatment

Purevita UV Sterilization Technology utilizes a specially designed high-intensity, high-efficiency, and long-life C-band 253.6nm ultraviolet light generator to produce powerful UV irradiation for water streams. This UV light destroys the DNA structure of pathogens in water, rendering them inactive and achieving sterilization. The principle of UV sterilization relies on photon energy: shorter wavelengths correspond to higher photon energy, resulting in stronger germicidal efficacy. At 253.6nm, UV light rapidly and efficiently disrupts bacterial DNA, preventing replication and ensuring effective water disinfection.

Hypochlorous acid generator is a system which is produced by electrolysis of tap water through water purification system and is produced by a special electrolytic cell. The system produce hypochlorous acid (HCLO) with pH (5~6.5), redox potential (ORP value +750mv or more) and available chlorine (50~60mg/L), also produce sodium hydroxide (NaOH) with PH (10~12), redox potential(ORP value -800~900 mv).

Medium-pressure ultraviolet disinfection equipment is a high-tech product developed by Purevita based on many years of disinfection experience and combined with a number of large and medium-sized municipal water disinfection and swimming pool water disinfection experiences, jointly developed by professors of various disciplines, design engineers, and on-site operators. The L-shaped appearance structure is more optimized than the conventional cross-shaped structure, and the ultraviolet utilization rate is higher.

Acidic Electrolyzed Oxidizing Water， another name “Hypochlorous acid” is a neutral, low-molecular-weight small molecule with no charge, allowing it to easily penetrate the negatively charged cell membranes and efficiently disrupt functional enzymes inside bacteria. Its bactericidal effectiveness is approximately 100 times greater than that of alcohol or iodine-based disinfectants. It can rapidly eliminate a wide range of microbial pathogens within a short period. Even highly resilient spore-forming bacteria can be killed within 10 minutes, achieving a destruction rate of over 99% against bacteria, fungi, and viruses.

Platinum-coated titanium electrode is a typical Dimensionally Stable Anode. It is a composite electrode constructed with a metallic titanium substrate as the base, upon which a thin layer of platinum (often not pure platinum but rather an alloy or mixture of platinum and other precious metals) serving as the active catalytic layer is applied onto its surface through specialized processes such as thermal decomposition or electroplating.

The ozone generation chamber and power cabinet are mounted on the same skid- mounted base. The generation chamber has a horizontal structure, with 1.5 meters of clearance required on both sides of the unit for maintenance, allowing for easy servicing and up keep.

Electrolyser(electrodes or electrolysis cell) is designed for producing 8000ppm sodium hypochlorite through 0.3% brine, which is stable and safty running onsite. The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years titanium base material, reduce the chlorine evolution potential and electricity consumption.

The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.
