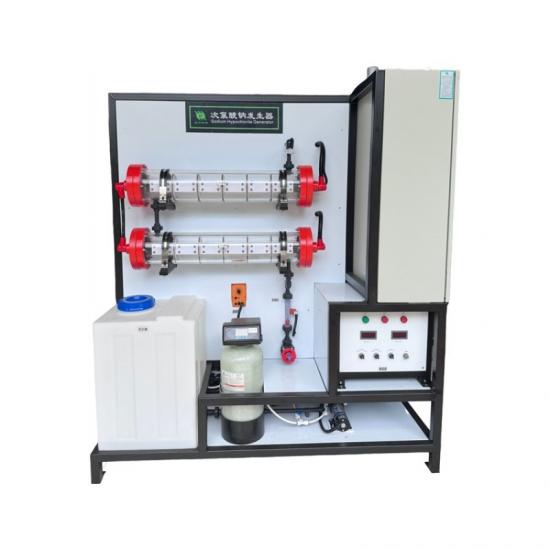

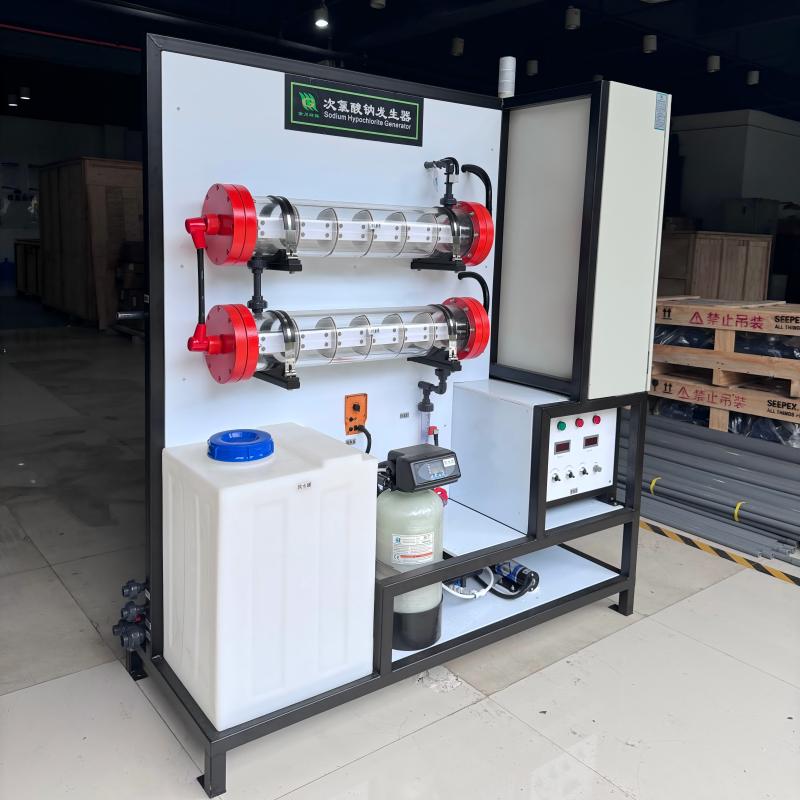

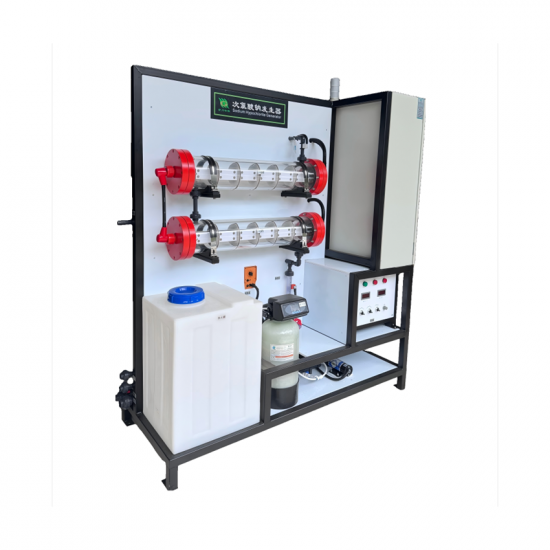

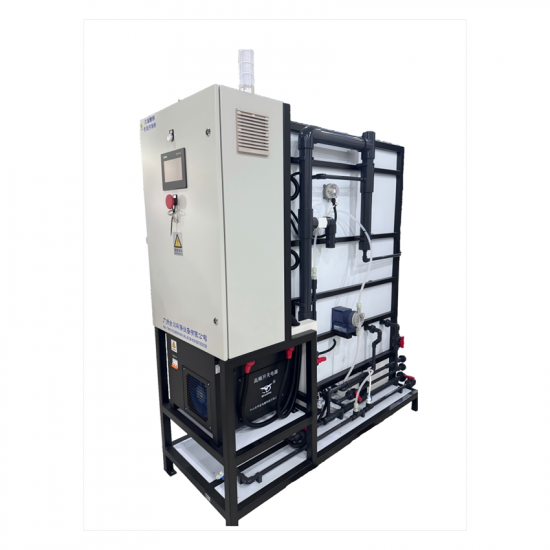

800g/h 0.8% Salt Water Electrolysis Sodium Hypochlorite Generator for Swimming Pool
The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.
Capacity:
800g/hOutput Flow:
125L/hControl:
PLC controlChlorine concentration:
5000~8000ppmAdditive:
Food Grade SaltSalt Consumption:
3.5kg/kg Cl2Power Consumption:
4.5kw/kw Cl2Application:
Drinking water plant, waste water plant, swimming pool, etc800g/h 0.8% Salt Water Electrolysis Sodium Hypochlorite Generator for Swimming Pool
Brief Introduction

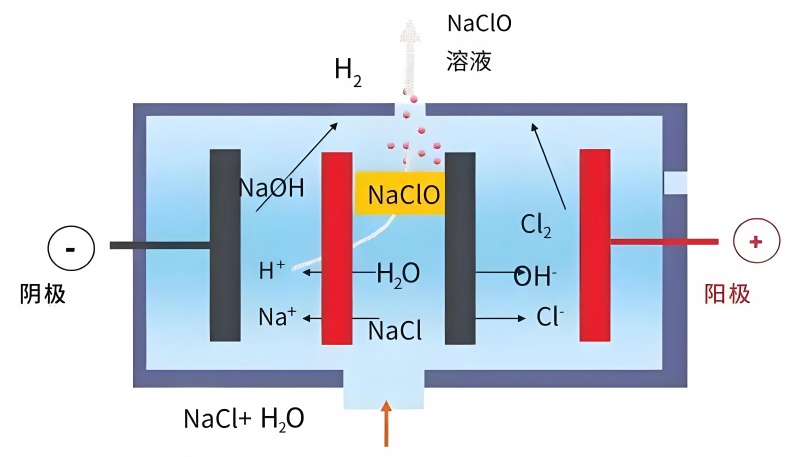

Saline solution contains the several kinds of ions such as Na +, H -, when electrolysis, under a certain voltage, as a result of the movement of ions in the electrolyte solution and electrode reaction, the conductive effect occurs, then CL -, OH - such as negative ion to the anode, and positive ions such as Na +, H + to the cathode, and the corresponding electrode discharge occurs, thus carries on the REDOX reaction, the corresponding material production.
Electrode reaction：
anode： 2Cl- - 2e → Cl2；
cathode： 2H+ + 2e → H2；
Solution reaction:
2NaOH + Cl2 → NaCl + NaClO + H2O
Overall reaction as follow：
Na Cl + H2O + DC →NaClO + H2↑
Advantage of Purevita Sodium Hypochlorite Generator
Specifications:
| Model | GTS-100 | GTS-200 | GTS-300 | GTS-400 | GTS--500 |
| Dimension of Host Machine | 720*750*1850mm | 720*750*1850mm | 720*750*1850mm | 720*750*1850mm | 720*750*1850mm |
| Available chlorine | 100g/h | 200g/h | 300g/h | 400g/h | 500g/h |
| NaClO Output flow | 20L/h | 40L/h | 60L/h | 80L/h | 100L/h |
| NaClO concentration | 5000ppm | 5000ppm | 5000ppm | 5000ppm | 5000ppm |
| Power supply | 1kw | 2kw | 2kw | 3kw | 3kw |
| Voltage | 220V/50hz single phase | 220V/50hz single phase | 220V/50hz single phase | 220V/50hz single phase | 220V/50hz single phase |
| Feed brine concentration | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% | 2.5~3% |
| Feed Salt requirement | Food grade salt | Food grade salt | Food grade salt | Food grade saltF | Food grade salt |
| Feed water flow | 20L/h | 40L/h | 60L/h | 80L/h | 100L/h |
| Feed water requirement | tap water | tap water | tap water | tap water | tap water |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power consumption | 4.5kw/kg Cl2 | 4.5kw/kg Cl2 | 4.5kw/kg Cl2 | 4.5kw/kg Cl2 | 4.5kw/kg Cl2 |
| Cell arrangement | Vertical | Vertical | Vertical | Vertical | Vertical |
Purevita's unique salt water electrolysis technology offers an eco-friendly, safe and economical solution for water disinfection. Using only salt, water, and electricity, our customized electrolytic cells produce sodium hypochlorite on site and on demand, eliminating the need for transporting hazardous chemicals.
