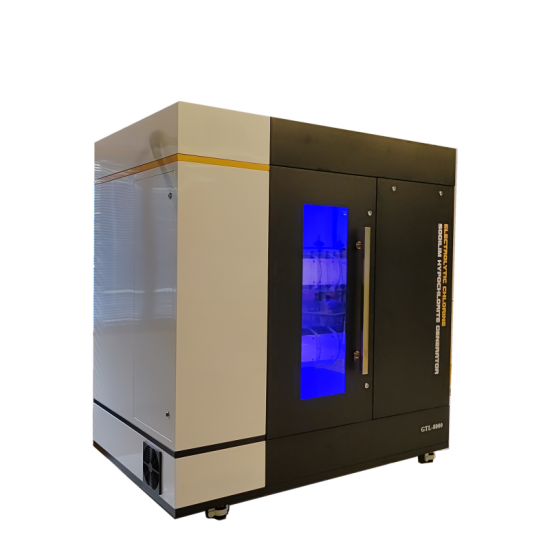

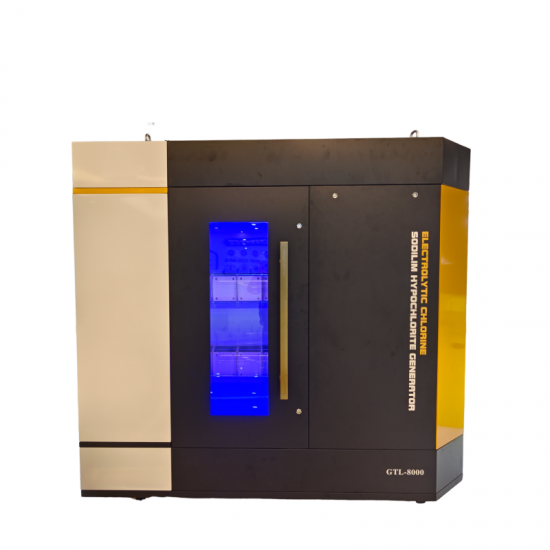

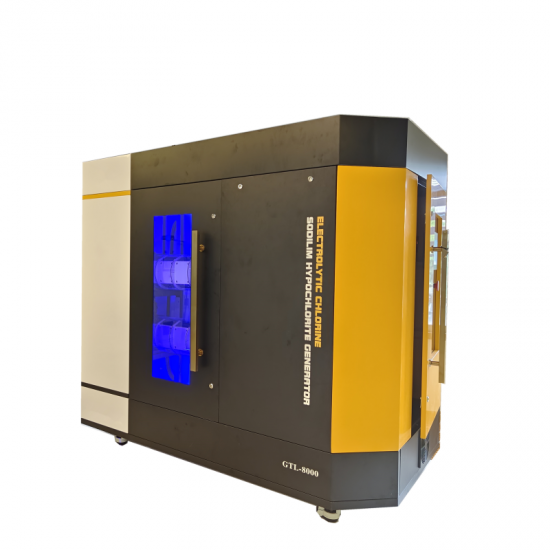

Salt Water Type PLC Control Sodium Hypochlorite Generator for Drinking Water Plant
Purevita's unique salt water electrolysis technology offers an eco-friendly, safe and economical solution for water disinfection. Using only salt, water, and electricity, our customized electrolytic cells produce sodium hypochlorite on site and on demand, eliminating the need for transporting hazardous chemicals.
Capacity:
10kg/hOutput Flow:
1250L/hControl:
PLC control/full automaticChlorine concentration:
8000ppmAdditive:
SaltSalt Consumption:
3.5kg/hr per cl2Power Consumption:
4kw/hr per cl2Application:
Drinking water treatmentSalt Water Type Sodium Hypochlorite Generator for Drinking Water Plant
Purevita Sodium Hypochlorite Generator
Salt Water Type PLC Control Sodium Hypochlorite Generator for Drinking Water Plant utilize electrolysis to generate sodium hypochlorite from brine, resulting in a solution with a concentration of 0.8%. This low-concentration sodium hypochlorite offers several distinct advantages:
Stability and Longevity:
Unlike conventional sodium hypochlorite solutions that can lose up to 20% of their chlorine content during storage, Purevita’s solution remains stable over months without requiring additives. This stability ensures consistent chlorine levels for effective disinfection.
Safety and Operational Efficiency:
Produced in close proximity to the process, the direct storage and dosing of sodium hypochlorite by Purevita systems minimize the risk of accidental spillage and exposure to operating personnel, enhancing overall safety protocols.
Main Features:
Raw Materials: Utilizes only salt or seawater, which are safe and convenient for transportation and storage, without volatility or toxicity concerns.
Electrode Connection: Employs a bipolar electrode connection mode, minimizing heat generation and reducing sodium hypochlorite salt and power consumption.
Efficiency Standards:
Salt consumption < 3.5kg / kg Cl2
AC Power consumption < 4kw / kg Cl2
Control System: Equipped with Siemens PLC and touch screen for full automatic control, ensuring operational precision and ease of use.
Longevity: Extended lifespan of critical components:
These features collectively make sodium hypochlorite disinfection a robust choice for water treatment facilities seeking effective, safe, and sustainable disinfection solutions.
| GTL-5000 | GTL-8000 | GTL-10000 | GTL-15000 | GTL-20000 | |
|---|---|---|---|---|---|
| Chlorine Capacity | 5Kg/hr | 8Kg/hr | 10Kg/hr | 15Kg/hr | 20Kg/hr |
| Water treatment Capacity(At 1ppm dosing) | 100mld | 160MLD | 200MLD | 300MLD | 400MLD |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power Consumption | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 |
| Concentration of HYPO | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm |
| Production Flow Rate | 625~1000 L/hr | 1000~1600L/hr | 1250~2000L/hr | 1875~3000L/hr | 2500~4000L/hr |
Advantage
Eliminate delivery & handling of hazardous chemicals
Handle only salt
Generate on site for on-demand or residual storage
No exhaust gases as with conventional sodium hypochlorite solutions in dosing pumps
Eliminate injection point scaling associated with commercial sodium and calcium hypochlorite
Considerable Health & Safety benefit to operators
Applications
The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.
View More
The Purevita sodium hypochlorite generator generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.
View More
On-site generation of chlorine disinfectants offers a safe, cost-effective, and efficient water treatment solution. Suitable for diverse applications—from potable water purification to cooling tower microbiological control—it enables the production of disinfectant precisely when and where it's needed.
View More
Medium-pressure ultraviolet disinfection equipment is a high-tech product developed by Purevita based on many years of disinfection experience and combined with a number of large and medium-sized municipal water disinfection and swimming pool water disinfection experiences, jointly developed by professors of various disciplines, design engineers, and on-site operators. The L-shaped appearance structure is more optimized than the conventional cross-shaped structure, and the ultraviolet utilization rate is higher.
View More
The ozone generation chamber and power cabinet are mounted on the same skid-mounted base. The generation chamber has a vertical structure, offering a small footprint and making it suitable for compact environments. Maintenance access is located at the top of the unit, so a clearance of 1.5 meters above the equipment must be reserved.
View More
The polarity reverse titanium electrolytic cell is utilized in sodium hypochlorite generators. Sodium hypochlorite solution is produced by electrolyzing a sodium chloride solution without a membrane and then diluting it. This technology is suitable for various applications including sodium hypochlorite generators, water treatment equipment, and electrolytic disinfection equipment.
View More
The ozone generation chamber and power cabinet are mounted on the same skid- mounted base. The generation chamber has a horizontal structure, with 1.5 meters of clearance required on both sides of the unit for maintenance, allowing for easy servicing and up keep.
View More
Fenton reaction: Under acidic conditions, H202 reacts with Fe2+to produce hydroxyl radicals, which can rapidly oxidize and decompose recalcitrant organic compounds. Our Magnetic Fenton Package System magnetize water molecules to rearrange them in the direction of magnetic field lines, greatly increasing the efficiency of hydroxyl radical oxidation and decomposition of COD. This can decompose most difficult to degrade organic compounds into carbon dioxide, water, and simple organic compounds
