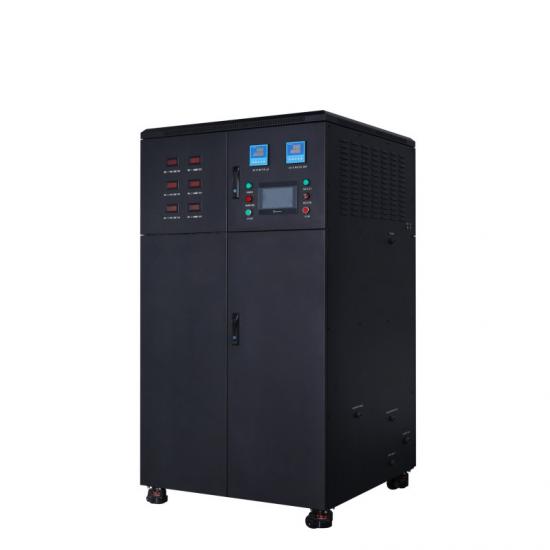

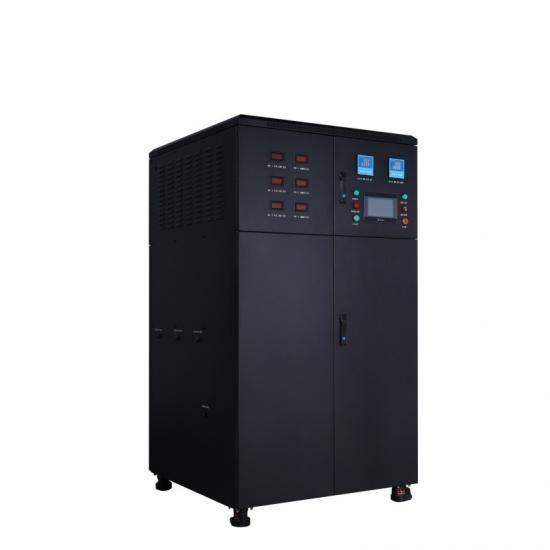

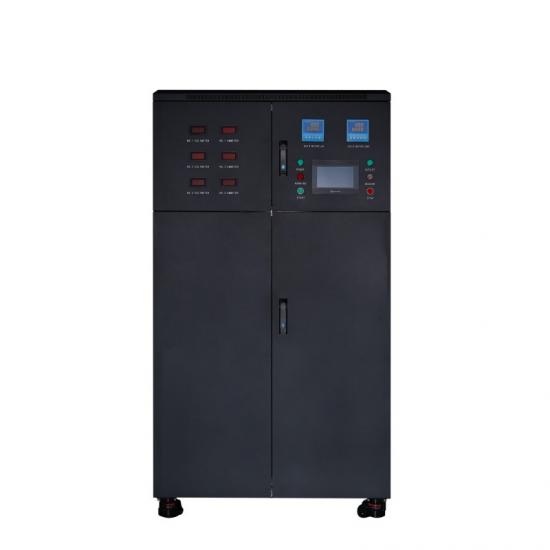

800ppm Natural Hypochlorous Acid Generator for Air Disinfection

Hypochlorous acid generator is a system which is produced by electrolysis of tap water through water purification system and is produced by a special electrolytic cell. The system produce hypochlorous acid (HCLO) with pH (5~6.5), redox potential (ORP value +750mv or more) and available chlorine (50~60mg/L), also produce sodium hydroxide (NaOH) with PH (10~12), redox potential(ORP value -800~900 mv).

Acidic Electrolyzed Oxidizing Water， another name “Hypochlorous acid” is a neutral, low-molecular-weight small molecule with no charge, allowing it to easily penetrate the negatively charged cell membranes and efficiently disrupt functional enzymes inside bacteria. Its bactericidal effectiveness is approximately 100 times greater than that of alcohol or iodine-based disinfectants. It can rapidly eliminate a wide range of microbial pathogens within a short period. Even highly resilient spore-forming bacteria can be killed within 10 minutes, achieving a destruction rate of over 99% against bacteria, fungi, and viruses.

Purevita UV Sterilization Technology utilizes a specially designed high-intensity, high-efficiency, and long-life C-band 253.6nm ultraviolet light generator to produce powerful UV irradiation for water streams. This UV light destroys the DNA structure of pathogens in water, rendering them inactive and achieving sterilization. The principle of UV sterilization relies on photon energy: shorter wavelengths correspond to higher photon energy, resulting in stronger germicidal efficacy. At 253.6nm, UV light rapidly and efficiently disrupts bacterial DNA, preventing replication and ensuring effective water disinfection.

Platinum-coated titanium electrode is a typical Dimensionally Stable Anode. It is a composite electrode constructed with a metallic titanium substrate as the base, upon which a thin layer of platinum (often not pure platinum but rather an alloy or mixture of platinum and other precious metals) serving as the active catalytic layer is applied onto its surface through specialized processes such as thermal decomposition or electroplating.

Electrochemical Recirculating Water Treatment System not only has the anti scaling, sterilization, algae killing, corrosion inhibition and other properties that can be achieved by chemical circulating water treatment, but also has functions such as scale removal, scale dissolution, and degradation of organic substances, thereby achieving the effects of increasing concentration ratio, reducing emissions, saving water and electricity in an environmentally friendly manner.

The sodium hypochlorite dosing system is configured with a softened water dilution function todilute the storage concentration of sodium hypochlorite to less than 5%

The alkaline electrolytic ionized water is formed by membrane electrolytic technology, and increases the concentration of hydroxide ions (OH-) (pH 10~12) and oxidation potential (-900 mV) in water. Unlike usual alkaline water, alkaline electrolytic ionized water does not contain synthetic surfactants or chemicals, so it is reliable and safe to use and has a high cleaning, sterilization and deodorization effect.

Electrolyser(electrodes or electrolysis cell) is designed for producing 8000ppm sodium hypochlorite through 0.3% brine, which is stable and safty running onsite. The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years titanium base material, reduce the chlorine evolution potential and electricity consumption.
