Ruthenium Iridium coating Pure Titanium Electrode For Water Treatement

The ultraviolet disinfector integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. The UV-C ultraviolet light generated by the imported or high-quality domestically produced high-efficiency, high-intensity, and long-life UV-C ultraviolet light generating device is used to irradiate the flowing water. When the bacteria and viruses in the water are irradiated with a sufficient dose of UV-C ultraviolet light (wavelength 253.7nm), their cell DNA and cell structure are destroyed, and cell regeneration cannot proceed, thereby achieving the effect of water disinfection and purification. The ultraviolet light with a wavelength of 185nm can also decompose organic molecules in the water, produce hydroxyl free radicals, and oxidize organic molecules in the water into CO₂ and H₂O , and achieve the effect of removing TOC.

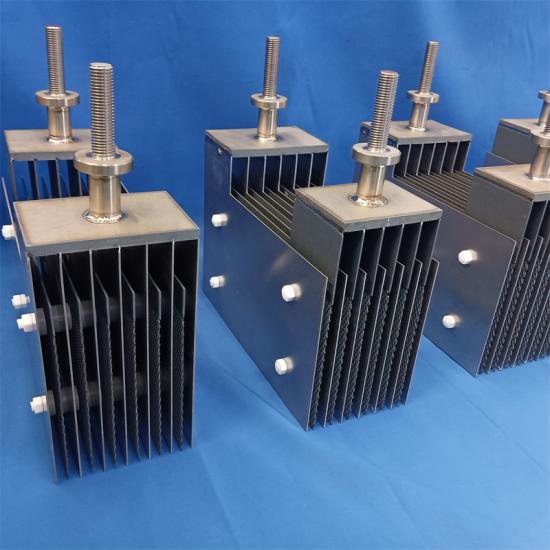

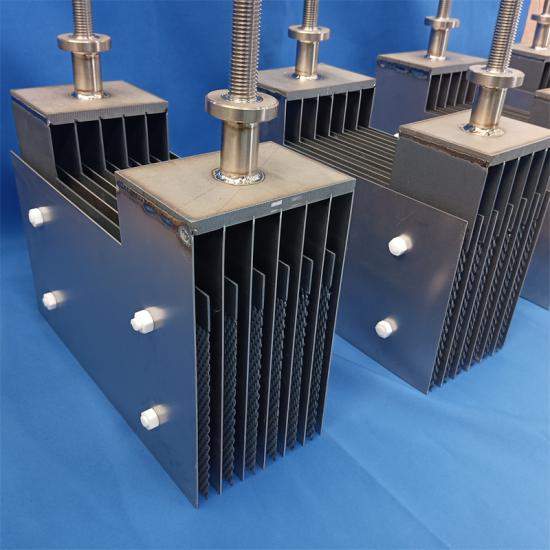

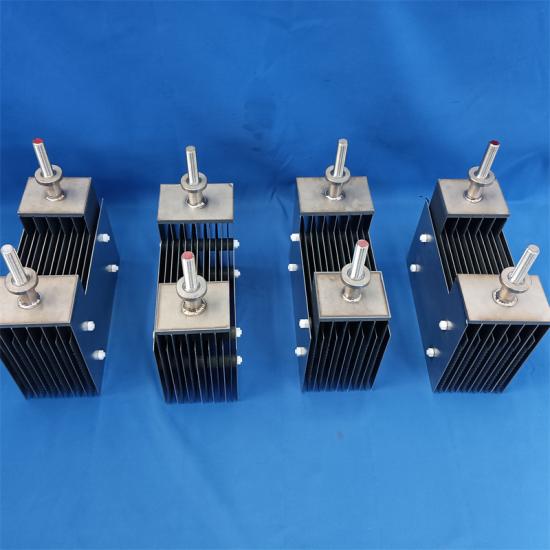

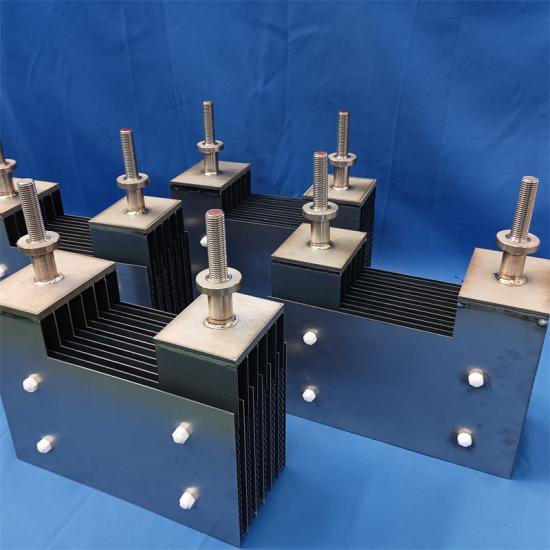

Electrolyser(electrodes or electrolysis cell) is designed for producing 8000ppm sodium hypochlorite through 0.3% brine, which is stable and safty running onsite. The electrodes is made of pure Titanium, with ruthenium & iridium oxide coating which ensure over 5 years coating life, over 18 years titanium base material, reduce the chlorine evolution potential and electricity consumption.

Sea Water Electrolysis Sodium Hypochlorite Generator is used electrolytic principle, it works through by on-site electrolysis of seawater to produce sodium hypochlorite solution, and automatically dosing into the feed seawater to eliminate algae and microorganisms, thus prevent the biofouling in the seawater system (such as cooling circuits, intake pipes and heat exchangers).

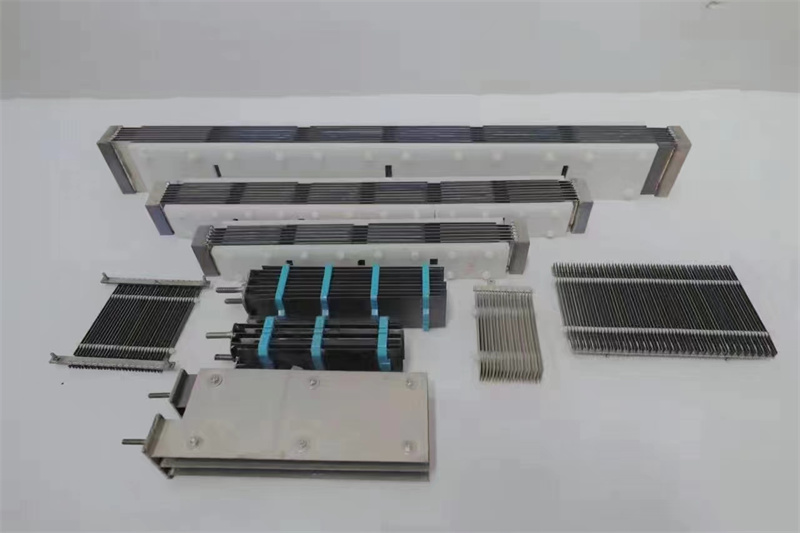

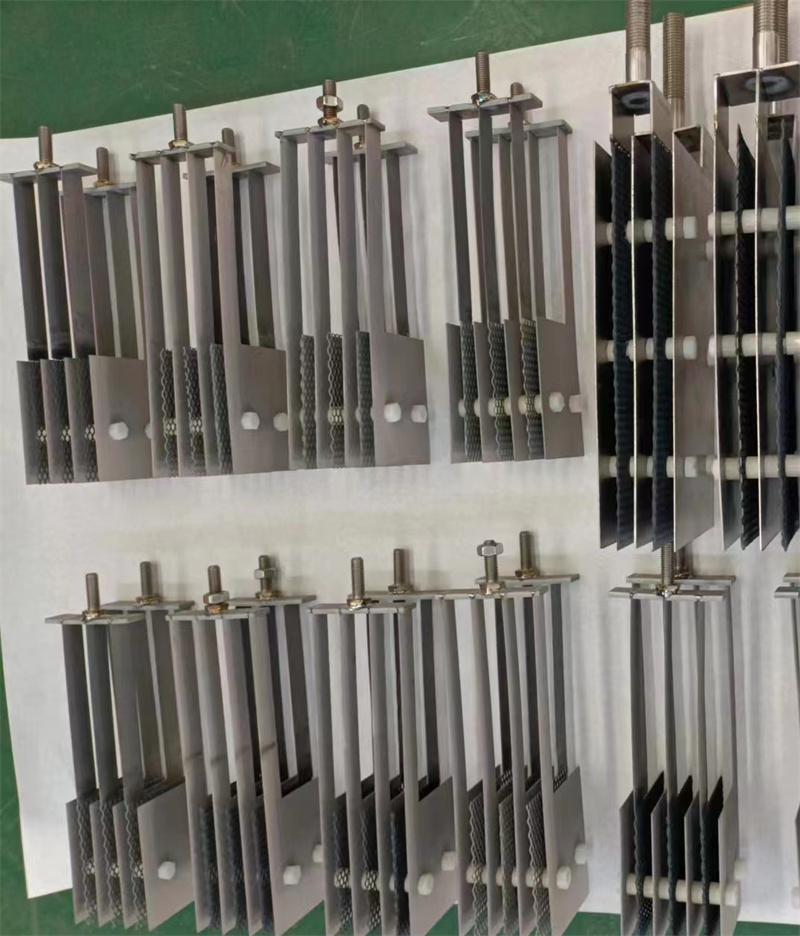

The polarity reverse titanium electrolytic cell is utilized in sodium hypochlorite generators. Sodium hypochlorite solution is produced by electrolyzing a sodium chloride solution without a membrane and then diluting it. This technology is suitable for various applications including sodium hypochlorite generators, water treatment equipment, and electrolytic disinfection equipment.

Purevita's unique salt water electrolysis technology offers an eco-friendly, safe and economical solution for water disinfection. Using only salt, water, and electricity, our customized electrolytic cells produce sodium hypochlorite on site and on demand, eliminating the need for transporting hazardous chemicals.

On-site generation of chlorine disinfectants offers a safe, cost-effective, and efficient water treatment solution. Suitable for diverse applications—from potable water purification to cooling tower microbiological control—it enables the production of disinfectant precisely when and where it's needed.

Fenton reaction: Under acidic conditions, H202 reacts with Fe2+to produce hydroxyl radicals, which can rapidly oxidize and decompose recalcitrant organic compounds. Our Magnetic Fenton Package System magnetize water molecules to rearrange them in the direction of magnetic field lines, greatly increasing the efficiency of hydroxyl radical oxidation and decomposition of COD. This can decompose most difficult to degrade organic compounds into carbon dioxide, water, and simple organic compounds

The ozone generation chamber and power cabinet are mounted on the same skid-mounted base. The generation chamber has a vertical structure, offering a small footprint and making it suitable for compact environments. Maintenance access is located at the top of the unit, so a clearance of 1.5 meters above the equipment must be reserved.
